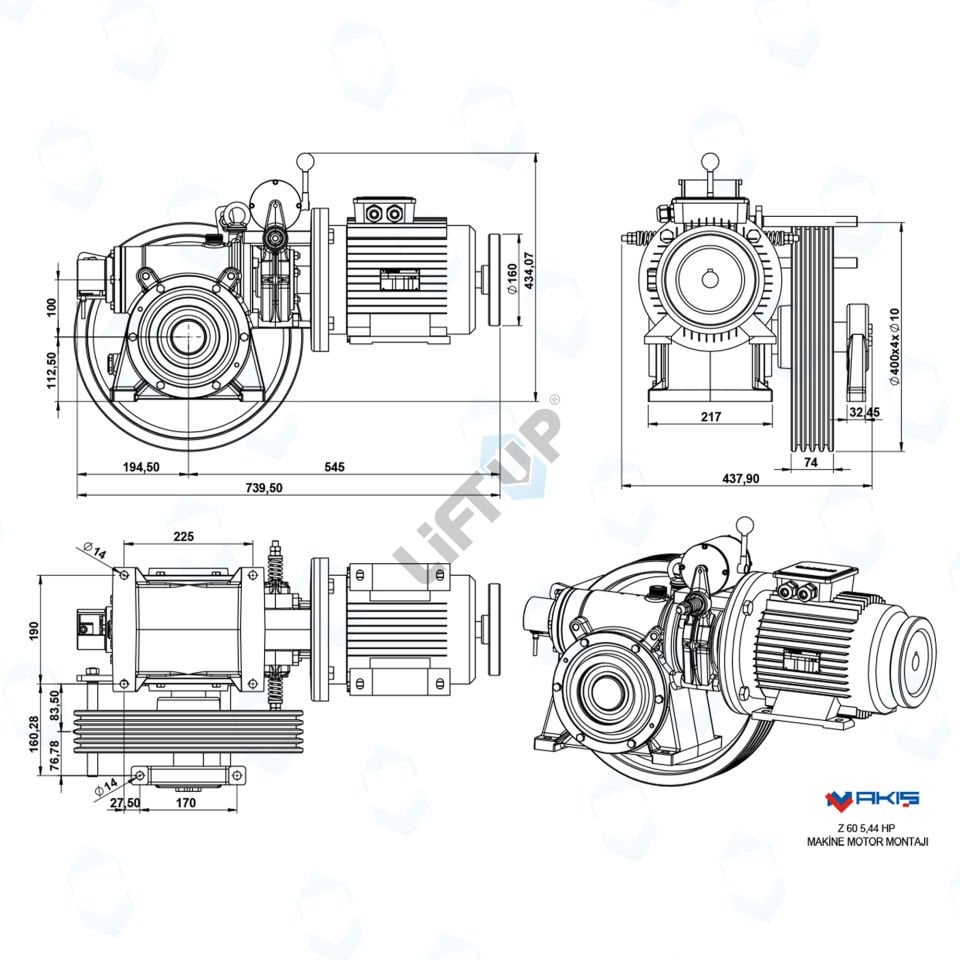

Z 60
0 Point - 0 Comment
| ZF 60 | Z 60 | Z 60 | Z 60 | |||
| Cabin Speed (m/s) | 1 | 0.58 | 0.46 | 0.46 | |||
| Capacity (kg) | 320 | 400 | 500 | 500 | |||
| Power(kW) | Kw | 4 | 3 | 3 | 3 | ||
| HP | 5.44 | 4.08 | 4.08 | 4.08 | |||
| Hanger Type | 01:01 | 01:01 | 01:01 | 01:01 | |||
| Current (A) | 8.4 | 6.7 | 6.7 | 6.7 | |||
| Pulley Diameter (Ø) | 400 | 400 | 320 | 320 | |||
| Number of Ropes (N) | 4 | 4 | 5 | 3 | |||
| Rope Diameter (Ø) | 10 | 10 | 8 | 8 | |||
| Static Load (kg) | 2500 | 2500 | 2500 | 2500 | |||
| Cruising Distance (M) | 33 | 33 | 33 | 33 | |||
